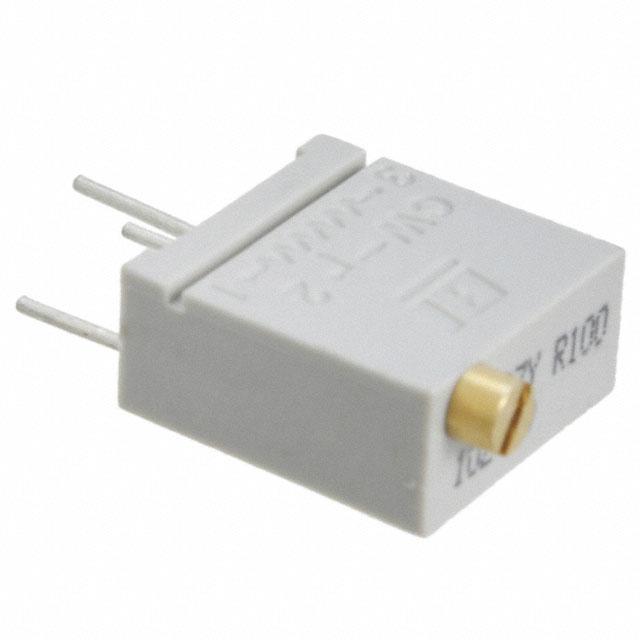

1kΩ, Through Hole Trimmer Potentiometer 0.5W Copal Electronics

Description

Shaft Diameter: 2.3 mm

Mounting Type: Through Hole

Maximum Operating Temperature: +125°C

Termination Style: Pin

Number of Turns: 18

Temperature Coefficient: ±100ppm/°C

Length: 9.6mm

Minimum Operating Temperature: -55°C

Power Rating: 0.5W

Maximum Resistance: 1kΩ

Tolerance: ±10%

This is 1kΩ Through Hole Trimmer Potentiometer 0.5W Copal Electronics manufactured by Nidec Components. The manufacturer part number is CT-94EX 1k Ohm. The diameter of the shaft is 2.3 mm. The product is available in through hole configuration. It has a maximum operating temperature of +125°c. Moreover, it has pin terminal style. Consist of 18 turns. It exhibits an excellent temperature coefficient of ±100ppm/°c. Its accurate length is 9.6mm. Whereas, the minimum operating temperature of the product is -55°c. Feature 0.5w of power rating. The product offers a maximum resistance up to 1kω. It features ±10% of tolerance value.
