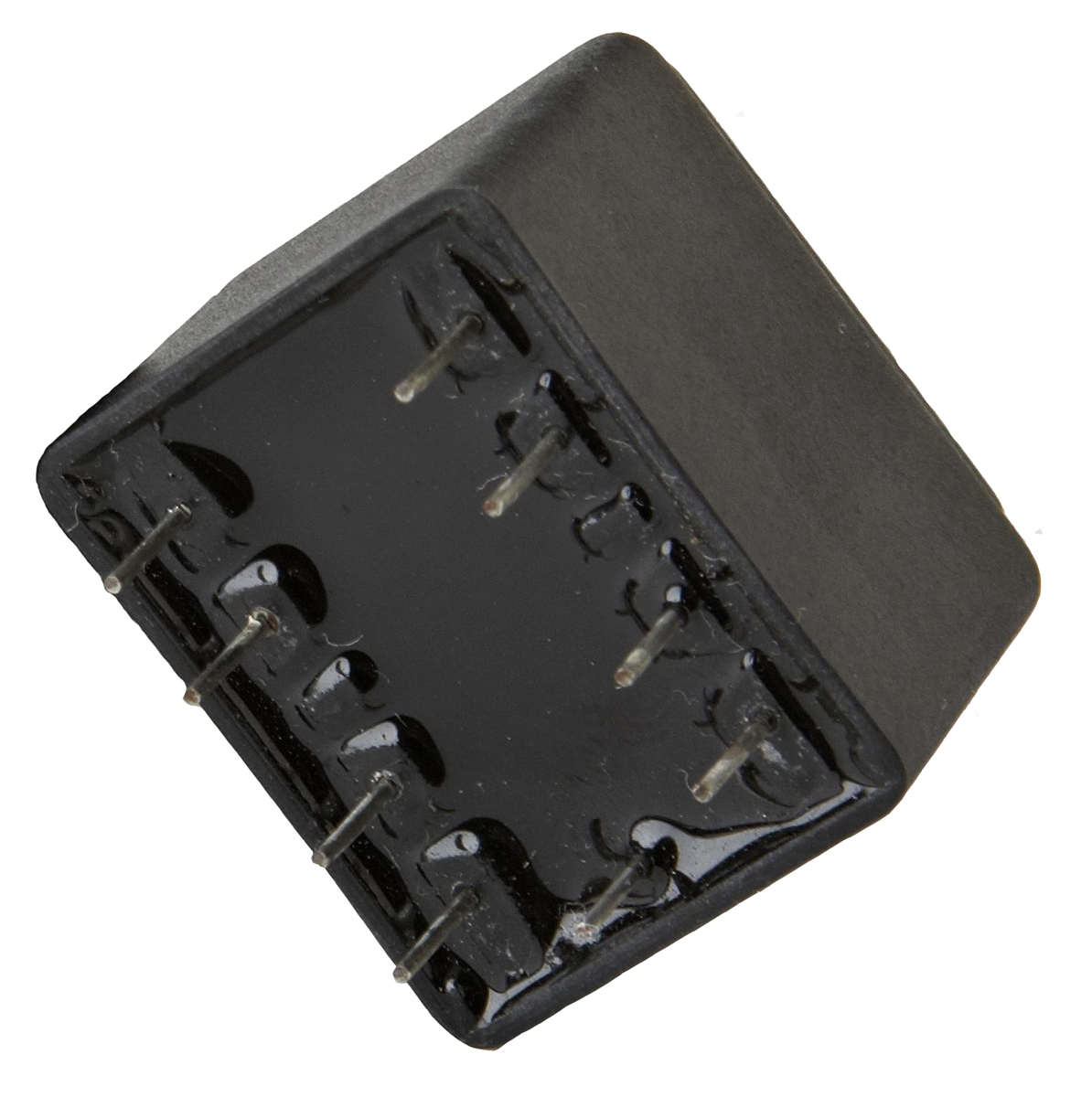

Through Hole Audio Transformer 1.2kΩ 2mW

Description

Primary DC Resistance: 117Ω

Isolation Voltage: 1000V

Dimensions: 18 x 18 x 15mm

Weight: 14g

Maximum Temperature: +75°C

Minimum Temperature: -20°C

Primary Impedance: 600Ω

Length: 18mm

Maximum Operating Frequency: 20kHz

Width: 18mm

Depth: 15mm

Construction: Enclosed

Minimum Operating Frequency: 40Hz Turns Ratio: 1:1.41 C.T Mounting Type: Through Hole Power Rating: 2mW Termination Type: PC Pin Secondary Impedance: 1.2kΩ Core Type: Laminated Secondary DC Resistance: 262Ω

This is Through Hole Audio Transformer 1.2kΩ 2mW manufactured by OEP. The manufacturer part number is Z1687E. Additionally, it has 117ω primary DC resistance . It has 1000v isolation voltage. The given dimensions of the product include 18 x 18 x 15mm. The typical product’s weight is 14g. The product has +75°c maximum temperature. While its minimum temperature is -20°c. It has about 600ω primary impedance . Its accurate length is 18mm. It carries 20khz of maximum operating frequency. Furthermore, the product is 18mm wide. The product comes in 15mm depth. The product has been well-designed with enclosed construction. It has a minimum 40hz operating frequency . It has 1:1.41 c.t turns ratio . The product is available in through hole configuration. Feature 2mw of power rating. The product is designed with a pc pin termination. Its secondary impedance is about 1.2kω . Robust product with a laminated core. It has about 262ω secondary DC resistance .
