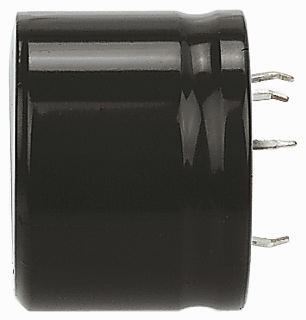

Wurth Elektronik Aluminium Electrolytic Capacitor 82μF 450V dc 25mm WCAP-AIG5 Series Aluminium, Through Hole

Description

Diameter: 25mm

Ripple Current: 640mA

Polarised: Polar

Dimensions: 25 (Dia.) x 31mm

Mounting Type: Snap-In

Series: WCAP-AIG5

Dissipation Factor: 20%

Capacitance: 82µF

Depth: 31mm

Voltage: 450V dc

Leakage Current: 738 μA

Lifetime: 2000h

Lead Pitch: 10mm Maximum Operating Temperature: +105°C Tolerance: ±20% Minimum Operating Temperature: -25°C Technology: Aluminium Electrolytic

This is Aluminium Electrolytic Capacitor 82μF 450V dc 25mm WCAP-AIG5 Series Aluminium Through Hole manufactured by Wurth Elektronik. The manufacturer part number is 861021484012. Its diameter is 25mm. Furthermore, 640ma is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 25 (dia.) x 31mm. The product is available in snap-in configuration. The product wcap-aig5, is a highly preferred choice for users. It provides a dissipation factor of 20%. It provides a 82µf of capacitance value. The product comes in 31mm depth. It carries a 450v dc of voltage. It harbors 738 μa of leakage current. It provides a long-lasting service for a period of 2000h. The lead features 10mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -25°c. This product use aluminium electrolytic technology.
