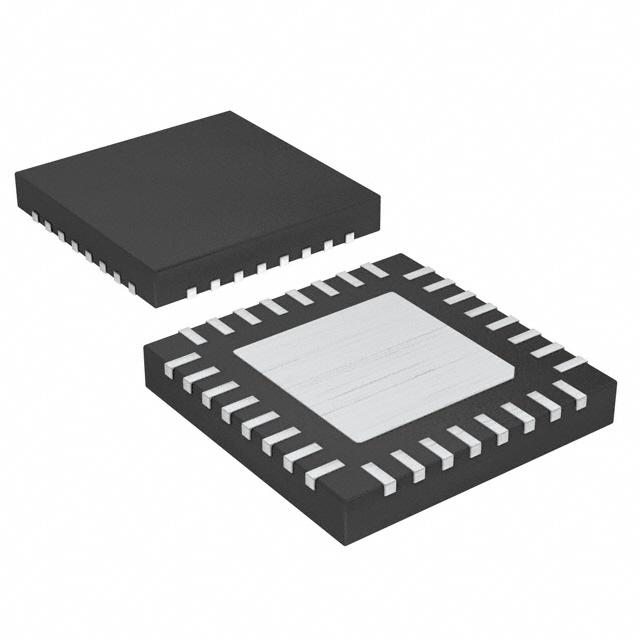

onsemi NCH-RSL15-512-101Q40-ACG

Description

Dimensions: 5.30 x 5.30mm

Mounting Type: Surface Mount

Modulation Technique: FSK

Package Type: QFN

Technology: 32 bit, Bluetooth

Pin Count: 40

RoHS Status: ROHS3 Compliant

Supplier Device Package: 40-QFN (5×5)

Operating Temperature: -40°C ~ 85°C

Memory Size: 512kB Flash, 80kB RAM

Package / Case: 40-VFQFN Exposed Pad

GPIO: 15

Type: TxRx + MCU Current – Transmitting: 4.3mA ~ 24.1mA Current – Receiving: 2.7mA ~ 6.7mA Modulation: 4-FSK, GFSK, MSK, O-QPSK REACH Status: REACH Unaffected Moisture Sensitivity Level (MSL): 3 (168 Hours) RF Family/Standard: Bluetooth standardLeadTime: 45 Weeks Data Rate (Max): 2Mbps Protocol: Bluetooth v5.2 Mounting Type: Surface Mount Series: RSL15 Sensitivity: -102dBm Serial Interfaces: I²C, PCM, PWM, SPI, UART Frequency: 2.4GHz Voltage – Supply: 1.2V ~ 3.6V Power – Output: 6dBm Base Product Number: NCH-RSL15

This ismanufactured by onsemi. The manufacturer part number is NCH-RSL15-512-101Q40-ACG. The given dimensions of the product include 5.30 x 5.30mm. The product is available in surface mount configuration. It is created with fsk modulation technique . The package is a sort of qfn. This product use 32 bit, bluetooth technology. It contains 40 pins. The product is rohs3 compliant. 40-qfn (5×5) is the supplier device package value. The product has -40°c ~ 85°c operating temperature range. It holds a typical memory size of 512kb flash, 80kb ram. Moreover, the product comes in 40-vfqfn exposed pad. It consists of 15 GPIO. It comes in txrx + mcu configuration. It carries 4.3ma ~ 24.1ma transmission current. The current receiving of the product is 2.7ma ~ 6.7ma. Features 4-fsk, gfsk, msk, o-qpsk modulation. In addition, it is reach unaffected. Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes bluetooth. It has a long 45 weeks standard lead time. Robust and maximum data rate speed of 2mbps. The product features a bluetooth v5.2 protocol. The product rsl15, is a highly preferred choice for users. The sensitivity given includes -102dbm. It features i²c, pcm, pwm, spi, uart serial interface. Supplied with 2.4ghz of frequency. It has optimum voltage supply of 1.2v ~ 3.6v. The product has an output power 6dbm. Moreover, it corresponds to nch-rsl15, a base product number of the product.
